Understanding What an Oscilloscope Is and How It Works
What is an Oscilloscope?
An oscilloscope is a device that enables us to observe and measure electronic signals, displaying their waveform on a screen. Imagine trying to understand how a rollercoaster works without seeing it in motion; similarly, an oscilloscope provides a visual representation of electrical signals, showing us characteristics like voltage over time. It lets us see everything from a simple periodic wave to complex signal compositions.
How Do Oscilloscopes Function?
Oscilloscopes capture electrical signals and convert them into visual data. By connecting the oscilloscope to a circuit, the device samples the signal at a high speed and plots its voltage against time. When you look at the screen, you’ll see the waveforms, which can tell you a lot about the performance of the circuit. Whether it’s diagnosing issues in signals or tuning a radio circuit, understanding how these functions work is essential.
Key Features to Look for in an Oscilloscope
Bandwidth Considerations
When choosing an oscilloscope, bandwidth is crucial. It reflects the range of frequencies the device can accurately measure. Think of bandwidth as the speed limit on a road; if the speed limit is too low, you can’t effectively see the fast-moving signals. For most hobbyist projects, a bandwidth of at least 100MHz is recommended, allowing for precise measurements of common electronics.
Sampling Rate Importance
The sampling rate is another vital feature; it refers to how often the oscilloscope samples the signal per second. Higher sampling rates give you clearer and more accurate waveforms. An oscilloscope with a sampling rate of 1 GSa/s (giga-sample per second) is ideal for capturing fast transients in circuits, making it a worthwhile investment for accurate signal representation.
Display Quality
A clear, high-resolution display can significantly enhance the usability of an oscilloscope. Look for models with a colour display, as they can show multiple signals and levels at once, making it easier to differentiate between them. A touch screen can also improve navigation and functionality, similar to how we interact with tablets and smartphones.
Choosing the Right Oscilloscope for Your Needs
Identifying Your Project Requirements
Consider what projects you’ll be working on. If you’ll be primarily analyzing simple circuits, a basic oscilloscope may suffice. However, for advanced work in mixed-signal designs or high-frequency applications, investing in a more sophisticated model with greater bandwidth and sampling rate is advisable. Understanding your requirements will direct you towards the right oscilloscope.
Portability Versus Desktop Models

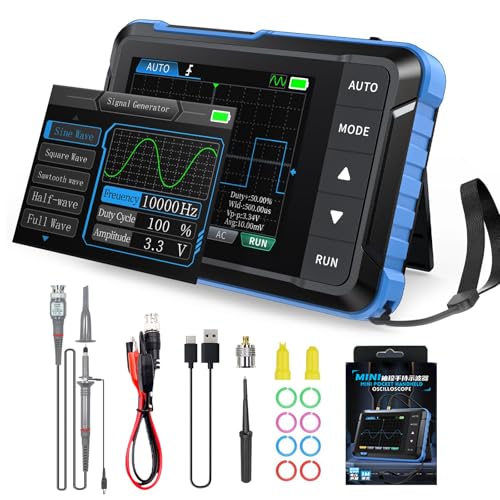

Would you prefer a portable oscilloscope that you can carry to different locations, or a desktop model that remains stationary? Portable oscilloscopes are perfect for fieldwork and can be powered by batteries, while desktop versions usually offer better performance and features. Assess your working environment and decide which form factor suits your needs.
Budget Considerations
Oscilloscopes can span a wide range of prices, from entry-level models to high-end professional devices. Establish a budget prior to shopping, and ensure the selected model meets your essential features without overextending your finances. Remember, choosing an oscilloscope is an investment; therefore, consider future needs alongside current ones.
Common Applications of Oscilloscopes in Everyday Life
Educational Purposes
In education, oscilloscopes are invaluable tools for teaching physics and electronics. Students use them in labs to visualize electrical signals, helping to cement their understanding of theoretical concepts through practical application. Experiments might include analysing sound signals or measuring the behaviour of capacitors and resistors.
Maintenance and Repair.
Oscilloscopes play a vital role in the maintenance and repair of electronic devices. Technicians frequently use them to troubleshoot malfunctioning equipment by visualizing fault signals and diagnosing issues. This application spans various fields, including automotive repair, where oscilloscope measurements offer insights into engine performance.
Research and Development
Engineers and researchers rely on oscilloscopes for developing new technologies. They use these devices to test prototypes and validate designs in industries such as telecommunications and consumer electronics. Here, the precise measurement of signal integrity is critical to advancing technology.
Tips for Getting the Most Out of Your Oscilloscope
Learn the User Manual
Every oscilloscope is unique, with different features and functionalities. Taking the time to thoroughly read the user manual can greatly enhance your understanding of your specific device. Learning about its capabilities, settings, and advanced features will allow you to use it to its fullest potential.
Regular Calibration
To ensure accurate measurements, regularly calibrate your oscilloscope. Calibration helps maintain the precision of your readings over time, similar to how we periodically have to adjust a compass for accuracy. Check the manufacturer’s guidelines on how often to perform this task.
Use Probes Properly
Using the right probes is essential for getting accurate readings. Ensure that the probes are compatible with your device for optimal performance. Probes also have different attenuation levels, and knowing how to use them properly can significantly impact the quality of the data you capture.
